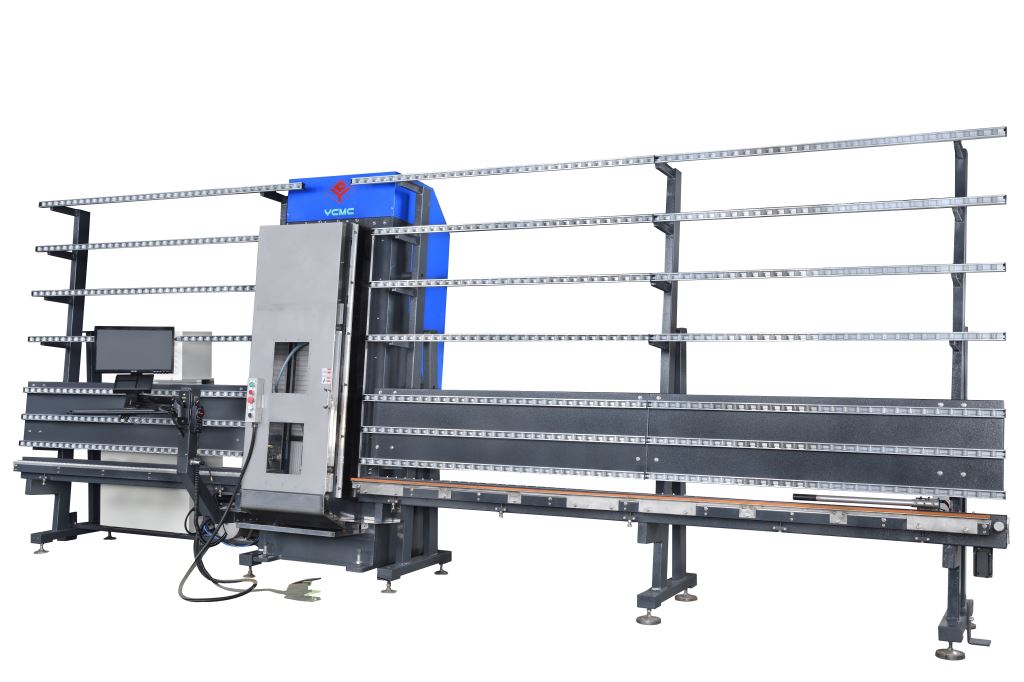

YC-340B Vertical Milling Machine

YC-340B Vertical Milling Machine is specifically designed for the milling and counter-sinking.
It is ususally required when installing the notches of the glass door hinges and fittings.

It doesn’t need to moving glass while processing.
The glass is held rigidly with clamp while the spindle is working.
Compared with other similer type of machines that needs to move glass, YC-340B ensuring more finishing quality and speed.

YC-340B is using CNC system, which is consisted in high accuracy 3-axis ball screws/linear guideway driven by servo motor.
Customer can control it via YC-Grind software and process what the shape they want to milling.


YC-340B Milling Machine specification (Standard)

Spindle Max Speed	Glass Thickness	Glass Minumum	Milling Tool Length	Power
12,000RPM	5-25mm	500*300mm	75mm or 85mm	8KW

The specification of YC-340B can be customerized.
