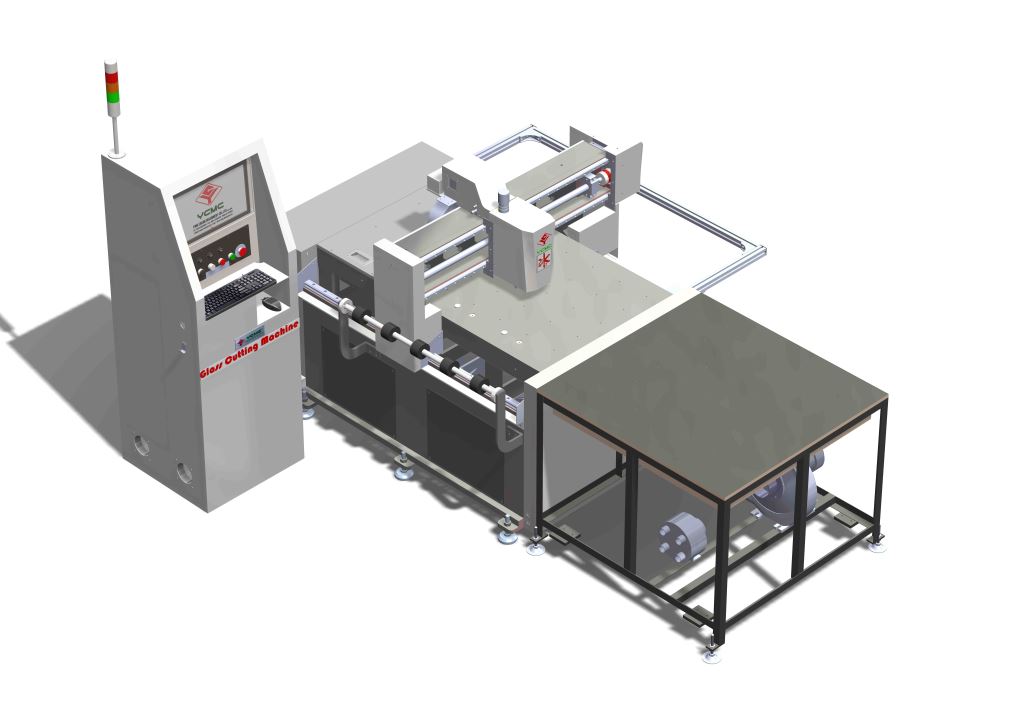

YC-300C Glass Cutting Machine
商品詳細介紹Product Introduction
YC-300C Glass Cutting Machine is suitable for small size thickness glass straight or irregular cutting procession line.
It can auto detect the glass material at feed inlet and localize the the glass material automatically.
The control system is based on PLC and Human Machine Interface.
Customer can modify or enter the parameters via touch screen.
It makes the production operation more automative and reduce human depandance.
Customer can install CCD optical alignment system(optional) to locate glasses automatically via image sensor.
Customer can also install automatic glass loading machine (Optional) or automatic glass breaking machine (Optional)
to achieve higher automated production line.
YC-300C Glass Cutting Machine specification (Standard)
| Machining Speed |
Glass Thickness |
Glass Minumum |
Glass Maximum |
Cutting Distance |
Cutting Error Value |
Power |
| 70M/min |
2-12mm |
300*300mm |
2000*1600mm
1500*1200mm |
1500*1200mm |
± 0.05mm(Straight Cut)
± 0.1mm (Irregular Cut) |
7KW |
The specification of YC-300C can be customerized.
